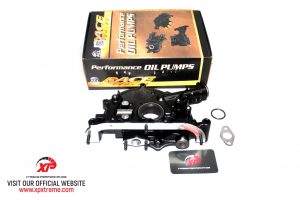

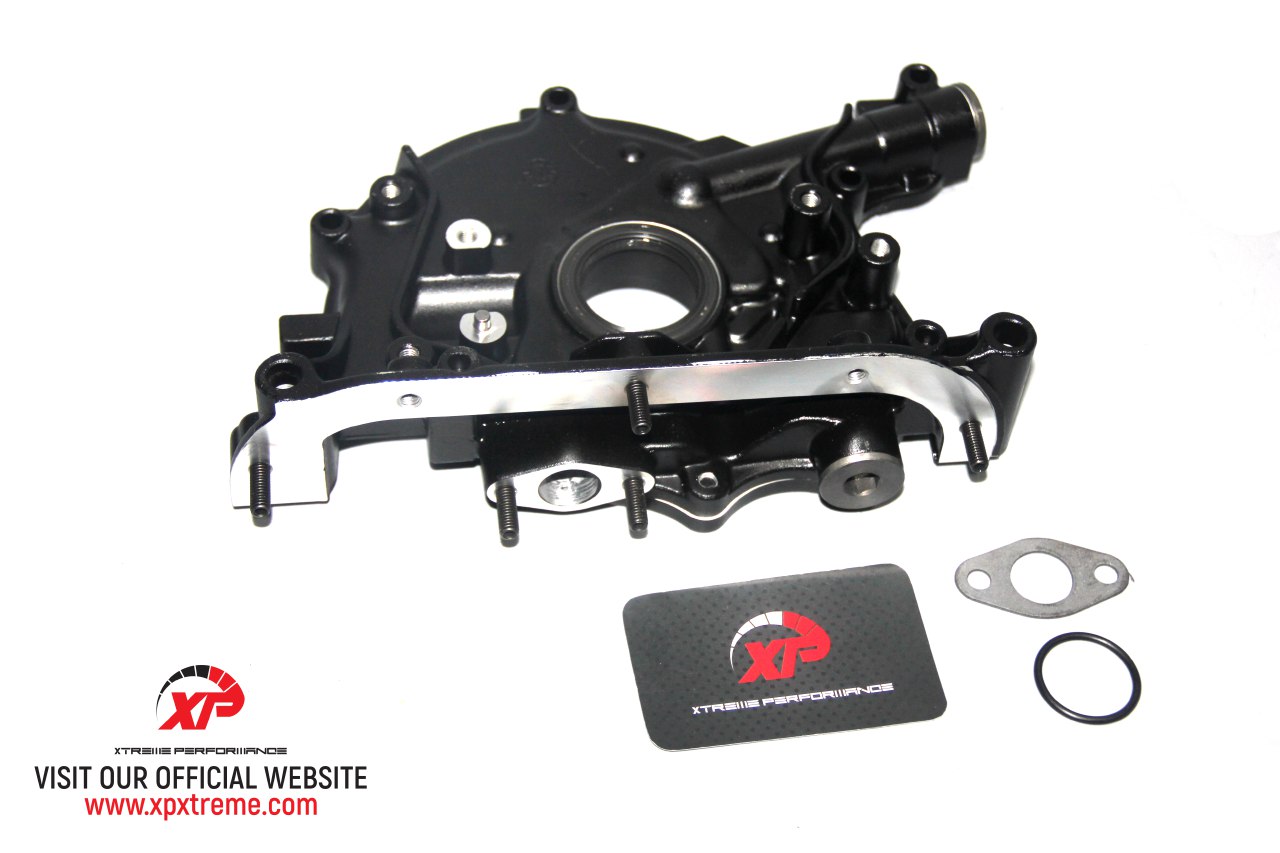

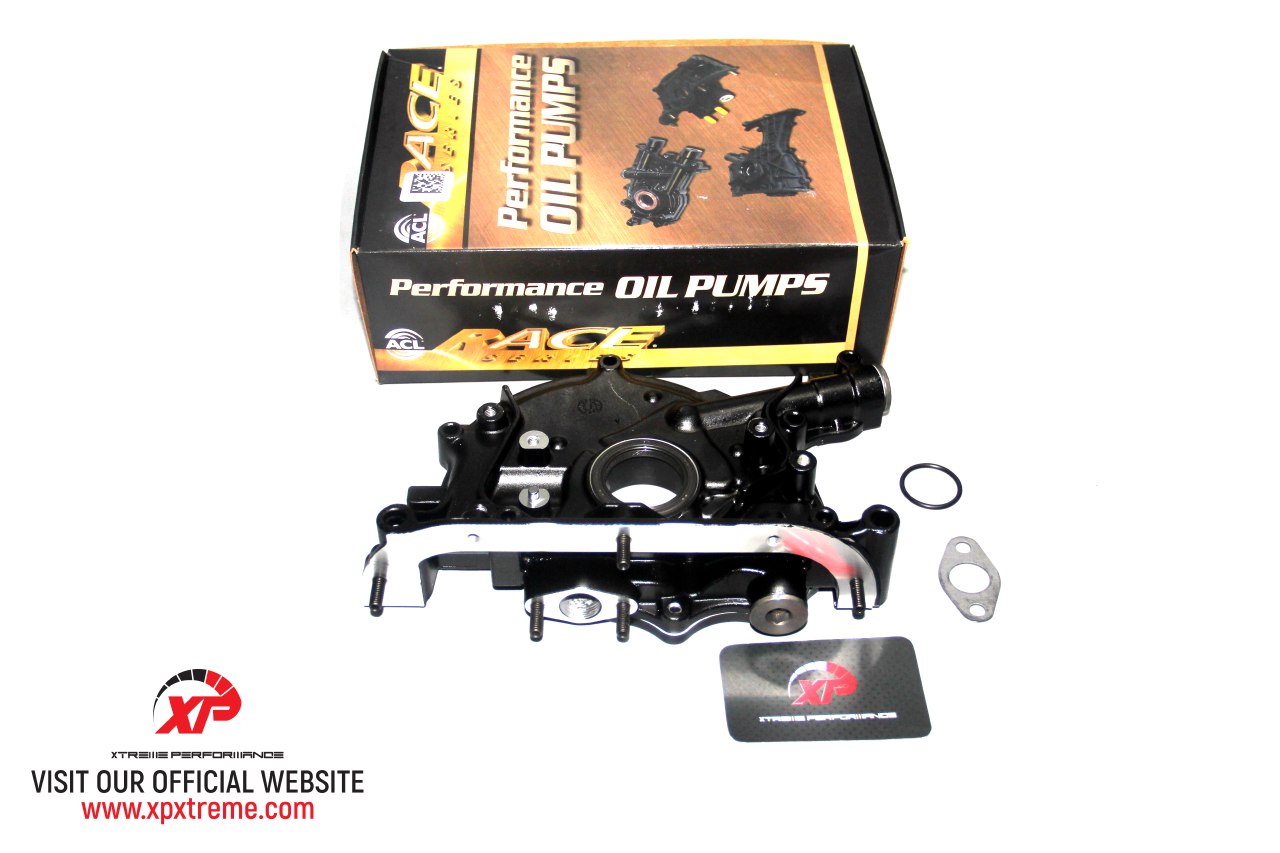

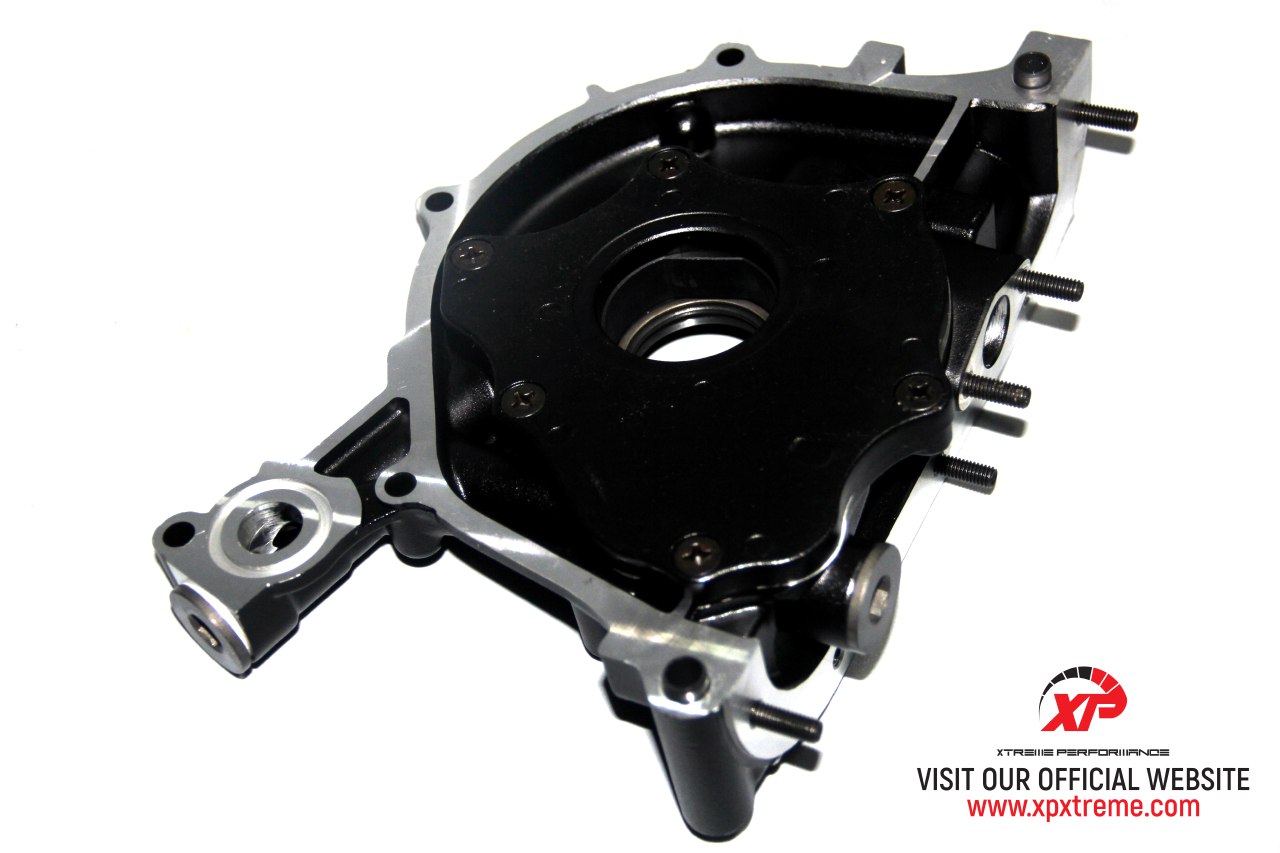

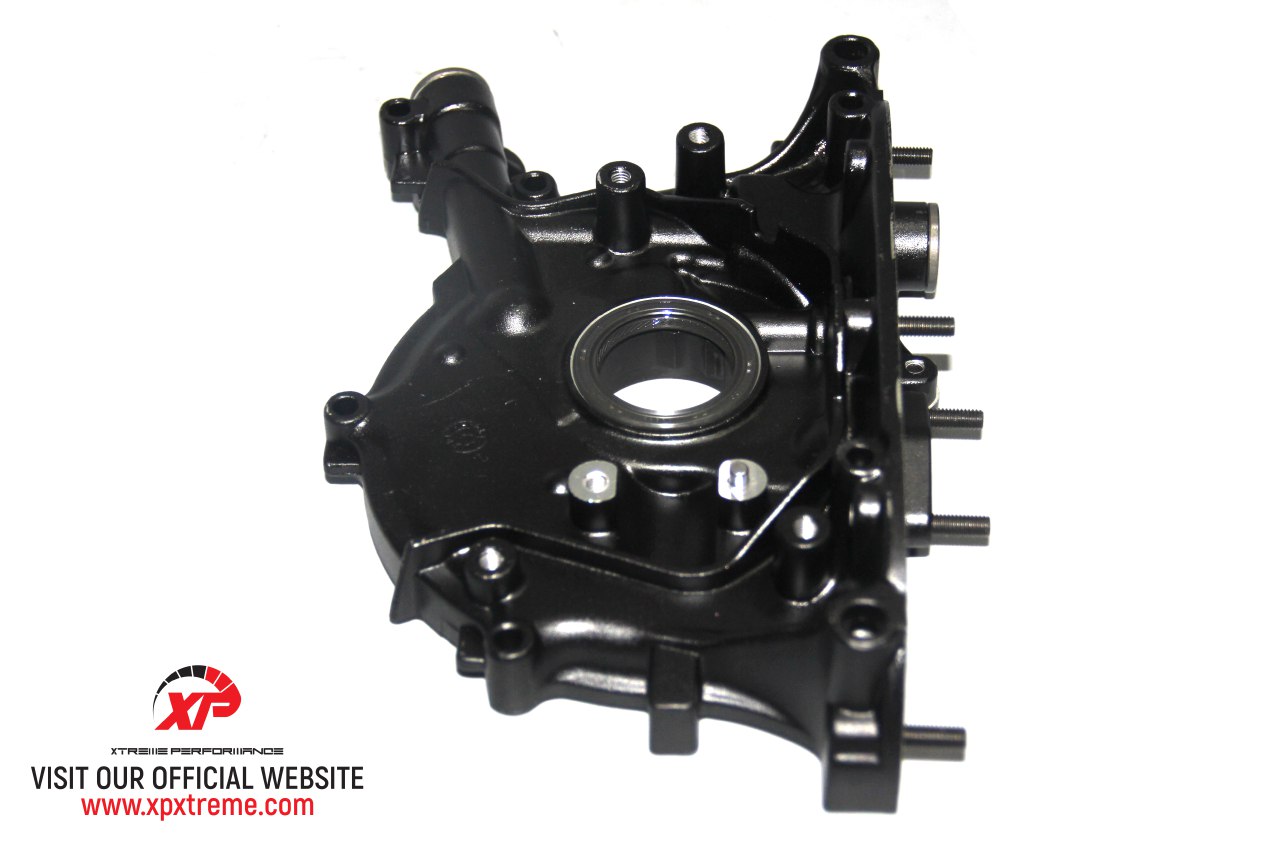

ACL Part# OPHD1194HP ACL Race performance B-Series oil pumps are designed with high output and volume capabilities required for high RPM performance engines (see flow data chart). The gerotors are precision machined from steel-copper alloy (FC0205), an exceptionally durable metal that assures dependability and durability. Tight housing and gerotor tolerances provide optimum pressure and flow requirements. Housings are die cast DC-12 aluminum and are anodized to prevent corrosion. All pumps are individually inspected and tested. ACL HIGH Performance B-Series Oil Pump Features: Die cast ADC-12 anodized aluminum for added strength and reduced weight Tight tolerances for optimum pressure and flow Steel copper alloy (FCO205) gearmotors assure dependable service and reliability Pump has brand new crank seal and O-Ring installed Has the provision for Crank Position sensors so the pump will work on all B-Series engines OBD1 & OBD2 Oil Pump Flow Data: Engine RPM - 600 - OE Oil Pump - 5.6 L/MIN - ACL Orbit Performance Oil Pump - 6.83 L/MIN Engine RPM - 3000 - OE Oil Pump - 27.3 L/MIN - ACL Orbit Performance Oil Pump - 33.3 L/MIN Engine RPM - 5000 - OE Oil Pump - 32.7 L/MIN - ACL Orbit Performance Oil Pump - 39.9 L/MIN
